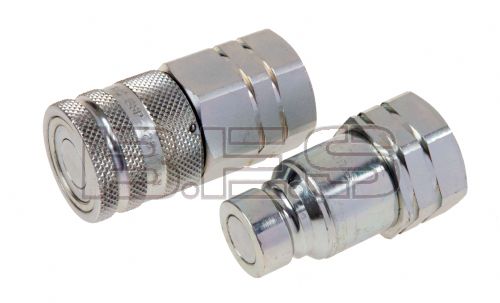

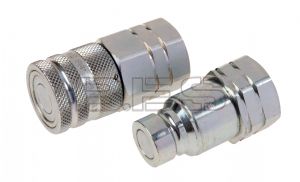

Flat Face Couplings ISO 16028 A Series

Flat Face Couplings ISO 16028 A Series

Printer Friendly Page
Skip to Description
Skip to Prices

Description

Stucchi A series Flat Face couplings.1

Technical Details

Datasheets

Flat Face Couplings ISO 16028 A Series datasheet

Click Here

Prices (Click quantity for more availability info)

	Thread	ISO SIze	Pressure	Mfr Ref	Order Code	Available	Each	Quantity
Flat Face - Carrier
	G1/8"	-	420 bar	A4	148231	0
	G1/4"	6.3mm	420 bar	A7	148232	0
	G3/8"	10.0mm	350 bar	A9	148233	0
	G1/2"	10.0mm	350 bar	A9	148234	0
	G1/2"	12.5mm	330 bar	A13	148235	0
	G3/4"	12.5mm	330 bar	A13	148236	0
	G3/4"	16.0mm	330 bar	A15	148237	0
	G1"	16.0mm	330 bar	A15	148238	0
	G3/4"	19.0mm	330 bar	A17	148239	0
	G1"	19.0mm	330 bar	A17	148240	0
	G3/4"	25.0mm	300 bar	A21	148241	0
	G1"	25.0mm	300 bar	A21	148242	0
	G1-1/4"	25.0mm	300 bar	A21	148243	0
	G1-1/2"	25.0mm	300 bar	A21	148244	0
	G1"	31.5mm	300 bar	A25	148245	0
	G1-1/4"	31.5mm	300 bar	A25	148246	0
	G1-1/4"	38.0mm	270 bar	A30	148247	0
	G1-1/2"	38.0mm	270 bar	A30	148248	0
	G2"	38.0mm	270 bar	A30	148249	0
Flat Face - Probe
	G1/8"	-	420 bar	A4	148250	0
	G1/4"	6.3mm	420 bar	A7	148251	0
	G3/8"	10.0mm	350 bar	A9	148252	3
	G1/2"	10.0mm	350 bar	A9	148253	11
	G1/2"	12.5mm	330 bar	A13	148254	0
	G3/4"	12.5mm	330 bar	A13	148255	0
	G3/4"	16.0mm	330 bar	A15	148256	0
	G1"	16.0mm	330 bar	A15	148257	0
	G3/4"	19.0mm	330 bar	A17	148258	0
	G3/4"	25.0mm	300 bar	A21	148260	0
	G1"	25.0mm	300 bar	A21	148261	0
	G1-1/4"	25.0mm	300 bar	A21	148262	0
	G1-1/2"	25.0mm	300 bar	A21	148263	0
	G1"	31.5mm	300 bar	A25	148264	0
	G1-1/4"	31.5mm	300 bar	A25	148265	0
	G1-1/4"	38.0mm	270 bar	A30	148266	0
	G1-1/2"	38.0mm	270 bar	A30	148267	0
	G2"	38.0mm	270 bar	A30	148268	0

(All Prices Exclude VAT)
